Product Characteristics

1.It is a fully automatic face mask packing machine developedby ourselves.With a number of invention patents and utilitypatents,belonging to the national high-tech products;
2.Adopt full servo control, photoelectric electric combination.It integrates non-woven fabric, bag, face cutting shape, folding,putting into the bag,adding essence, sealing, coding,forming,counting,output and other functions. Stable operation,simple and fast are its advantages;
3.lt detects the positions of lack of fabric, liquid and bag andwill alarm automatically;
4.Using Japanese knife, which is resistance, not easy to wear.Japan imported electrical appliances stable operation, Canadaimported metering pump filling accurate, food grade runningsynchronous belt, 316 stainless steel contact surface materialprotection,safety and hygiene. The whole procedure is hand-written byJapanese electricalengineers, accurate,fast andstable.Well received by users, has been sold in more than 20countries and regions.

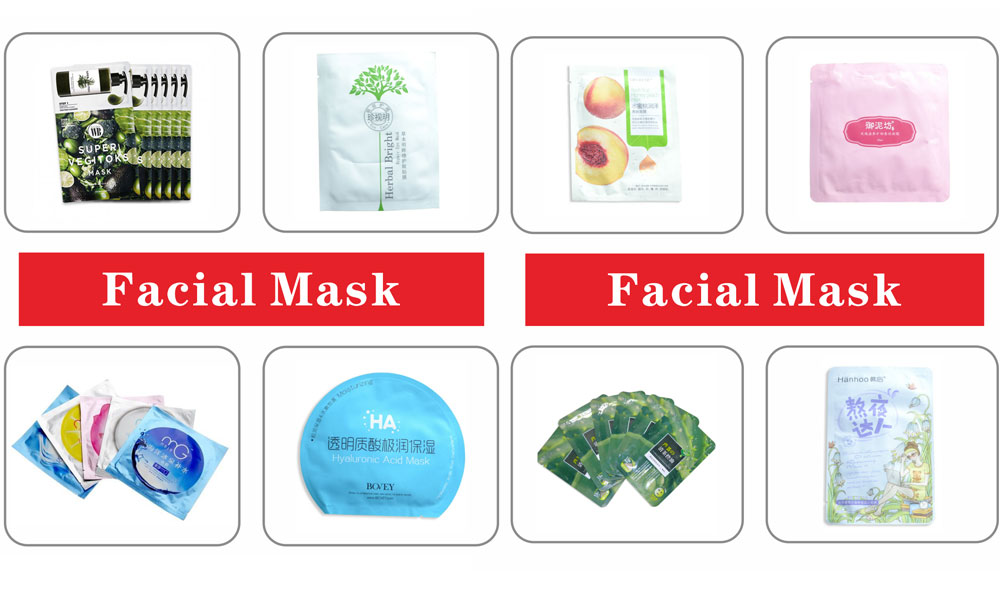

Product Sample

Technical Parameter

PRODUCT SIZE	Three-step Mask Bag (Adjustable)
PACKAGING MATERIAL	Complex membrane,aluminum -plated film, polyethylene，polypropylene and other thermal composite materials
MASK MATERIAL	30-80g heavySpunlacednon-woven fabric/cotton/silk/ Tencel, etc.(surface layer); PP cotton (support layer)
MATERIAL SPECIFICATION	75mm(Core diameter) 1000mm(Maxoutside diameter)
FACIAL MASK SHAPE	Customized according to customer requirements
MASKSIZE	200-260mm*200-260mm(L*W)
RATE OF PRODUCTION	100-150 bags/min
FILLING RANGE	10-50ml
POWER SUPPLY	380V 50Hz 8KW
AIR CONSUMPTION	>=1.5m2/min
BAROMETRIC DEMAND	0.6-1.0Mpa
MACHINE WEIGHT	8000kg
MACHINE SIZE	13500*2860*2230mm(L*W*H)
